Industrial POE injector/Splitter

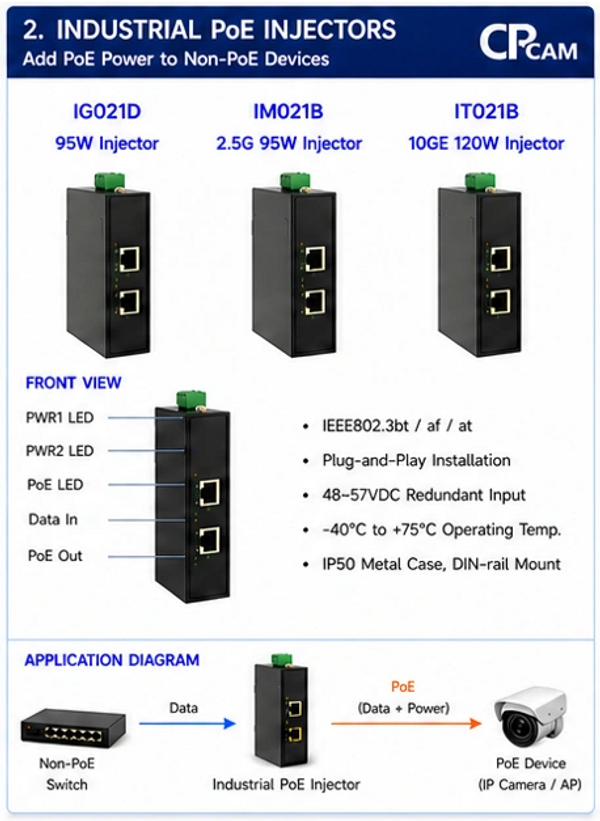

Model   Speed  Power  Std        Budget

IG021D    Giga    95W    af/at/bt     90W

IM021A   2.5G    30W     af/at       30W

IM021B   2.5G     95W    af/at/bt   90W

IT021B   10G      120W   af/at/bt   120W

• Input: 48~57VDC redundant, 4‑pin terminal block
• DIN‑rail, IP50, -40°C ~ +75°C
• Giga      / 2.5G / 10G speeds
• PoE      output: 30W / 95W / 120W (802.3bt ready)
• Slim      size: 61×58×26mm

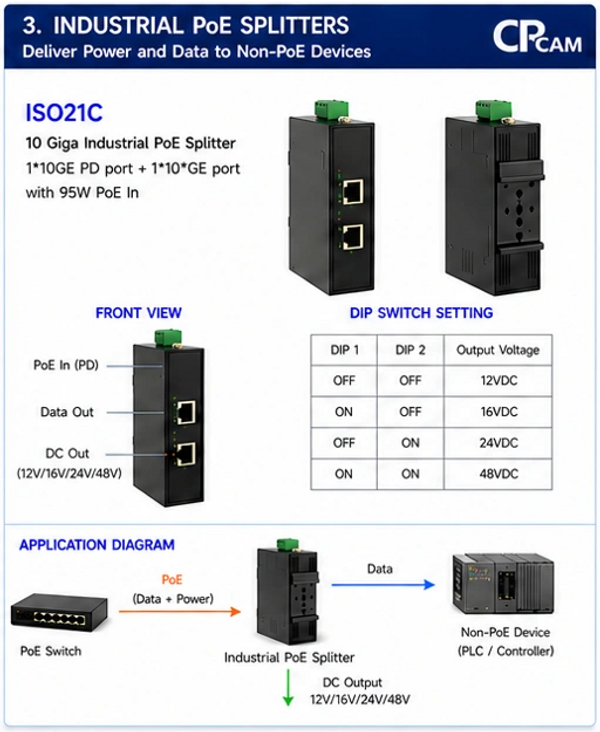

• 10G data output, selectable 12V/16V/24V/48VDC up to 95W
• DIP  switch controlled, rugged protection

PD   Input  ~ 42.5~57VDC   (802.3af/at/bt)

Data   Output  ~ 10G   Ethernet

Power   Output  ~ Selectable   12V/16V/24V/48VDC, up to 95W

Efficiency   ~ DIP   switch controlled

Protection  ~ ESD   ±6KV contact, ±8KV air; Surge ±2KV line‑earth

Dimensions  ~ 99×90×28mm

Mounting  ~ DIN‑rail   / wall‑mount
